Description

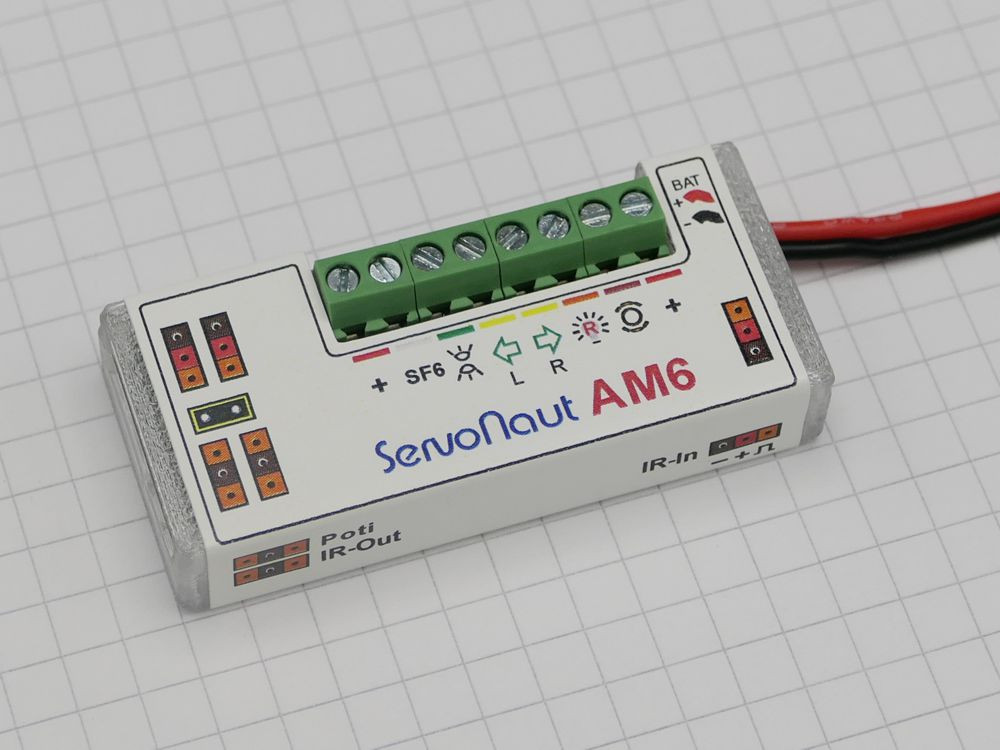

  • compact trailer electronics
  • speciality: built-in IR-Transmitter for road-train usage
  • potentiometer-input for steerable "King-bolt" from Pistenking or similar
  • suitable for all Servonaut IR-modules, and with an AIRU usable with modules of most other manufacturers
  • controls 6 outputs, e.g. driving lights, break and reverse lights, indicators and one extra function
  • light-outputs all provide light bulb simulation, which can be controled with an LA6
  • extra function output is a simple switching output, thus suitable for rotating lights and similar
  • all outputs for up to 700mA and protected against short circuits
  • two proportional servo outputs
  • integrated switching BEC for servos at 5V/3A
  • power supply voltage: 7.2 up to 14.4 V
  • current draw: 20 mA (idle)
  • output voltage: same as power supply
  • protections: short circuit, overload, polarity reversal
  • dimensions: about 55 x 25 x 13 mm
  • compatible accessories:
  • for M20/M24: IR-sender module AIR4
  • for light modules LA6/LA10: corresponding AIR-diodes
  • for light modules LA4/ML4 or modules from different manufacturers: AIRU
  • for road-train usage: IR-Set
Documents
AM Anleitung  (1.31 MB) :
Am user manual
