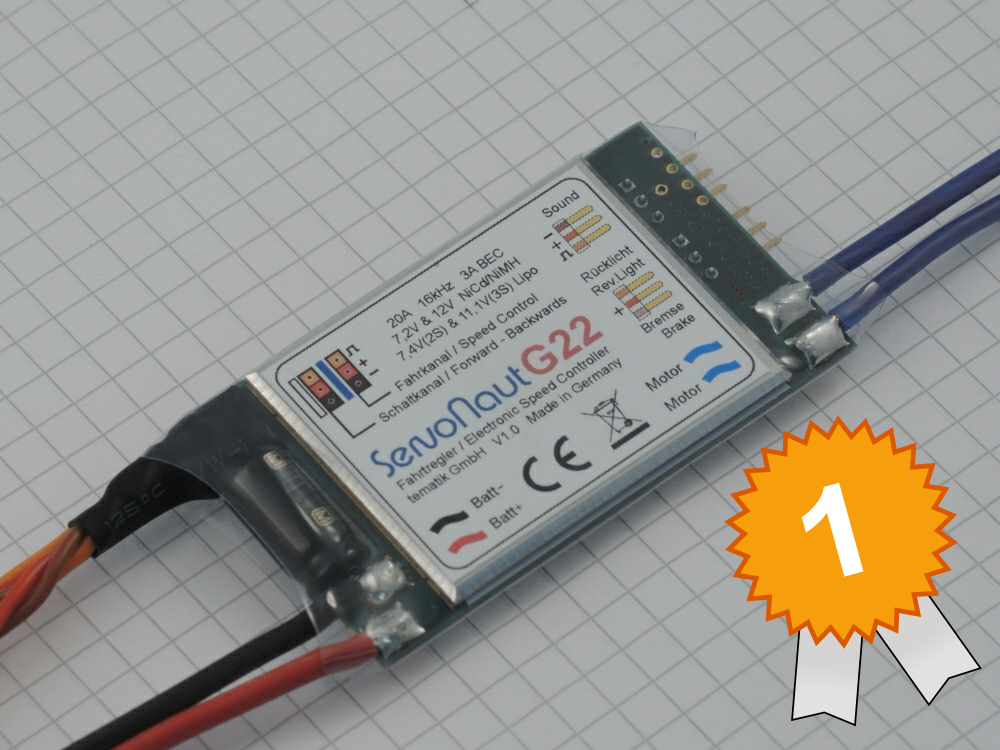

20A speed controller with gear simulation, 4A SBEC and outputs for brake/tail light for function models in sizes 1:16 to 1:8
- NEW: simulates the driving dynamics and shifting of a 4-gear automatic transmission
- can be driven with or without cruise control
- optimized for Servonaut GM32 gearbox drives (U360, U390, U430, U450)
- realistic driving and switching sound with all Servonaut sound modules
- compatible with Servonaut lighting systems LA10 or ML4
- very high resolution and sensitivity: over 450 steps!
- transitionless EMK brake, no loss of control when driving downhill
- robust 5V / 3A BEC receiver supply with large cooling area
- low-voltage cut-off for 6 or 10 cells NiCd / NiMH, 2S or 3S lithium polymer with automatic detection of the battery type
- continuously 16kHz switching frequency, suitable for coreless motors, no engine whistling
- temperature, current, voltage and reception monitoring with motor stop in case of interference (at 40 MHz) or empty battery
- two 700mA outputs for brake light and reversing lights, protected against overload and short circuit
- suitable for LEDs and / or light bulbs
- realistic brake light - while driving forwards/backwards
- automatic neutral position with power-on guard
- Plug & Play: No teaching-in, settings or adjustments required!
- needs one channel (without cruise control) or two channels (with cruise control)
- two diagnostic LEDs for status and error display
- dimensions (mm) only approx. 70 x 38 x 9
- Please note: The G22 is not reasonably useable in conjunction with real gear boxes!
